电机

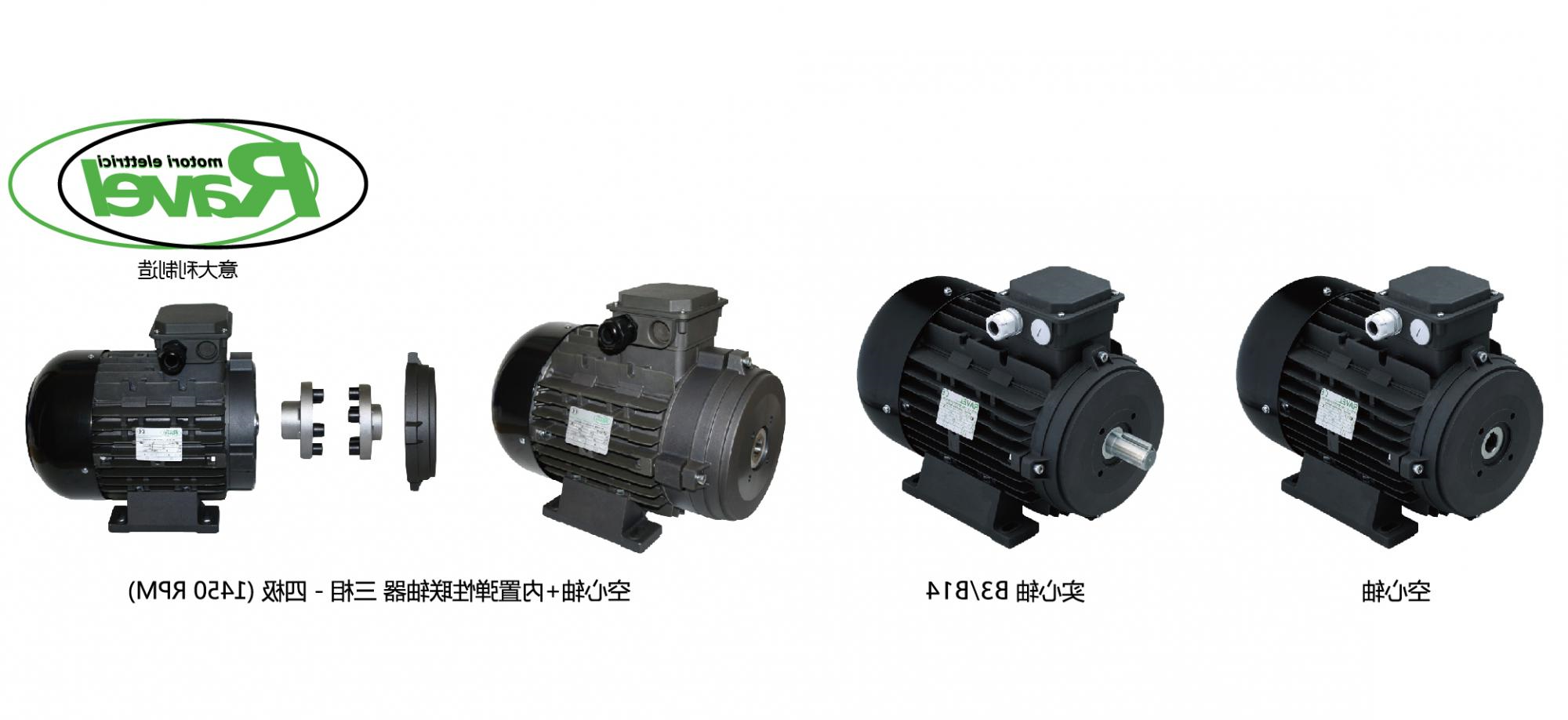

50Hz 电机 - B3 框架 - 空心轴 - 单相 - 四级 (1450 RPM)
|
电机功率 |
减速机公司高 |
法兰盘使用尺寸图 |
序号 |
适宜泵的形号 |
|
|
kw |
hp |
|
|
|
|
|
2.0 |
2.5 |
90 |
90mm |
1045A |
RC |
|
2.0 |
2.5 |
90 |
90mm |
TBA |
RC, 可配触点开关、电线电缆及电源线 |
|
2.2 |
3.0 |
100 |
90mm |
1130A |
RC - RR - RS - XT |
|
2.2 |
3.0 |
100 |
90mm |
TBA |
RC - RR - RS - XT, 配备旋钮、家用电线及电源插座 |
|
2.6 |
3.5 |
100 |
90mm |
1341A |
RC - RR - RS - XT |
|
3.0 |
4.0 |
112 |
61mm |
1562A |
XM - RK |
|
3.0 |
4.0 |
112 |
90mm |
1333A |
RS |
|
3.0 |
4.0 |
112 |
90mm |
1564A |
RC - RR |
50Hz 电机 - B3 框架 - 空心轴 - 三相 - 四级 (1450 RPM)
| 瓦数 | 调速电机主高 | 蝶阀法兰安裝外形尺寸 | 序号 | 使用泵的主要参数 | |
| kw | hp |
|
|
|
|
| 2.2 | 3.0 | 90 | 61mm | 1828A | XM - RK - RG |
| 4.0 | 5.5 | 100 | 61mm | 1129A | XM - RK - RW - XW - RG |
| 4.0 | 5.5 | 100 | 90mm | 1149A | RC - RR - RS |
| 4.0 | 5.5 | 100 | 90mm | TBA | RC - RR - RS, 配备电开关、线路及电源线插头 |
| 4.0 | 5.5 | 112 | 61mm | 1242A | XM - RK - RW - XW - RG |
| 5.5 | 7.5 | 112 | 61mm | 1131A | XM - RK - RW - XW - RG |
| 5.5 | 7.5 | 112 | 90mm | 1559A | RC - RR |
| 5.5 | 7.5 | 112 | 90mm | 1147A | RS |
| 6.2 | 8.5 | 112L | 61mm | 1334A | XM - RK - RW - XW - RG |
| 6.2 | 8.5 | 112L | 90mm | TBA | RC - RR |
| 7.5 | 10.0 | 132S | 61mm | 1120A | RK - XW - RG |
| 7.5 | 10.0 | 132S | 90mm | 1717A | RR |
| 9.2 | 12.5 | 132L | 61mm | 1561A | RK - XW - XWL - SXW - RG |
| 11.0 | 15.0 | 132L | 61mm | 1143A | RK - XW - XWL - SXW - SHP - RG |
| 12.5 | 17.0 | 132L | 61mm | 1235A | RK - XW - XWL - SWL - SHP - RG |
| 15.0 | 20.0 | 160S | 61mm | 1289A | XW - XWL - SWL - SHP |
| 电功率 | 同步电机核心高 | 法兰部进行安装规格尺寸 | 标码 | 应用泵的型号查询 | |
| kw | hp |
|
|
|
|
| 15.0 | 20.0 | 160S | B3 / B14 | 2087A | XW - XWL - SXW - SHP - RG |
| 耗油率 | 三相异步电机重点高 | 卡箍装有尺码 | 代码 | 实用泵的产品型号 | |
| kw | hp |
|
|
|
|
| 3.0 | 4.0 | 112 | 61mm | TBA | XM - RK |
| 3.0 | 4.0 | 112 | 90mm | TBA | XT - JR - RC - RR |
| 输出 | 无刷电机心中高 | 法兰片进行安装厚度 | 顺序号 | 使用泵的形号 | |
| kw | hp |
|
|
|
|
| 4.0 | 5.5 | 112 | 61mm | TBA | XM - RK |
| 4.0 | 5.5 | 112 | 90mm | TBA | XT - RC - RR |
| 5.5 | 7.5 | 112 | 61mm | TBA | XM - RK - RG - XW |
| 5.5 | 7.5 | 112 | 90mm | TBA | RR |
| 6.2 | 8.5 | 112 | 61mm | TBA | RK - RG - XW - XWL |
| 6.2 | 8.5 | 112 | 90mm | TBA | RR |
| 7.5 | 10 | 132S | 61mm | TBA | RK - RG - XW - XWL |
| 7.5 | 10 | 132S | 90mm | TBA | RR |
| 9.2 | 12.5 | 132M | 61mm | TBA | RK - RG - XW - XWL - SXW - SHP |
| 9.2 | 12.5 | 132M | 90mm | TBA | RR |
| 11.0 | 15 | 132M | 61mm | TBA | RG - XW - XWL - SXW - SHP |
| 11.0 | 15 | 132M | 90mm | TBA | RR |
综上所述一切电动机均为绝缘层平衡等级 F - S1 - IP55
